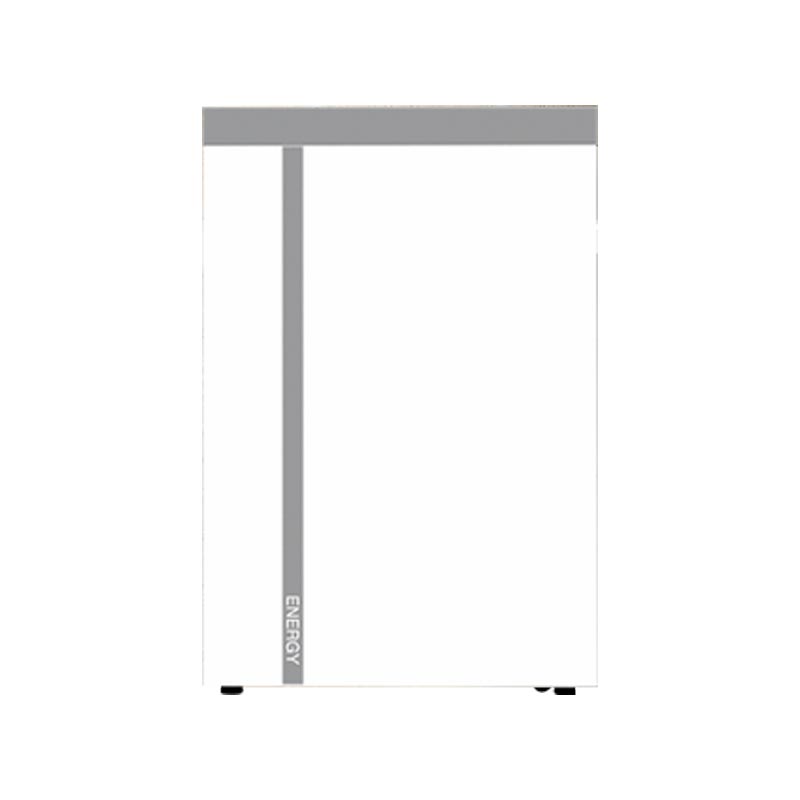

GEEYA WALL-MOUNTED ESS-WLL005B1-5.22KWH
GEEYA yang dipasang di dinding ESS-WLL005B1-5.22KWH adalah solusi penyimpanan energi yang dipasang di dinding mutakhir yang dirancang untuk memaksimalkan efisiensi energi untuk penggunaan perumahan. Dengan kapasitas total 5.22kWh dan energi yang dapat digunakan 4,96kWh, sistem ini memastikan daya cadangan yang andal, mengurangi biaya listrik, dan mendukung kehidupan yang berkelanjutan - semuanya sambil memadukan mulus ke lingkungan rumah Anda.
Key Features & Benefits of Geya Wall-Mounted Residential ESS-WLL005B1-5.22kWh
● High Capacity & Efficiency
5.22kWh Total Energy | 4.96kWh Usable Energy (DC)
95% Max. Depth of Discharge (DOD): Utilize almost all stored energy without compromising battery life.
● Ultra-Reliable & Maintenance-Free
Natural Cooling System: No noisy fans or active cooling required.
Wide Operating Range: Functions flawlessly in temperatures from 0°C to 55°C.
Robust Protection: Safeguarded against over-current, over-voltage, short circuits, and extreme temperatures.
● Space-Saving & Flexible Installation

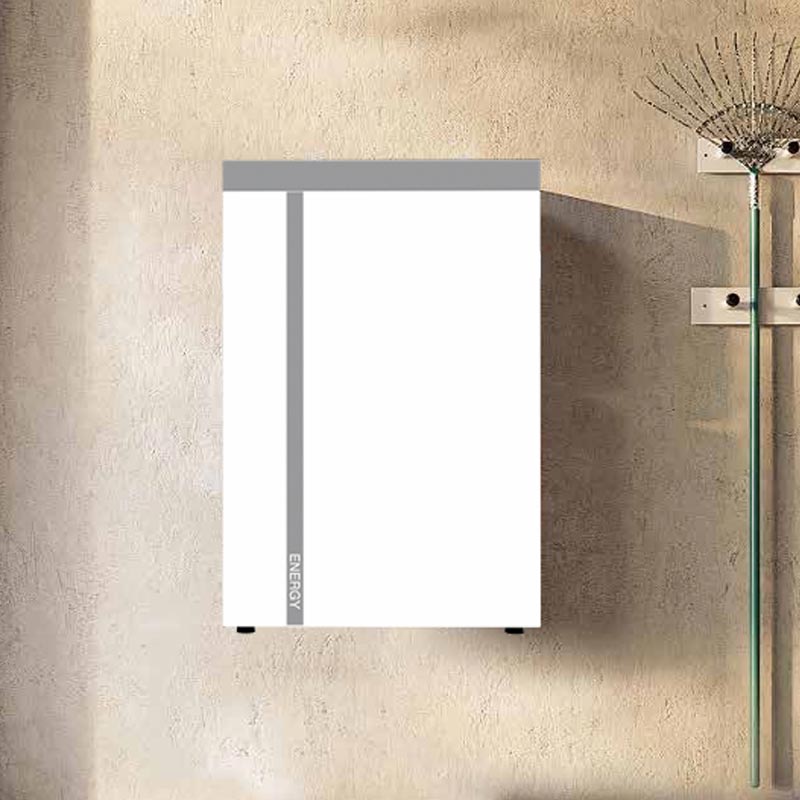

Compact Design: Slim dimensions (632x418x136.5mm) and 45kg weight for easy wall-mounting or floor-standing.
IP20 Rating: Ideal for indoor use in garages, basements, or utility rooms.
● Certified Safety & Longevity
RoHS Compliant: Environmentally friendly materials.
5-Year Warranty: Backed by Geya’s trusted quality.
CE, UN38.3, MSDS Certified: Meets global safety standards.
Why Choose Geya ESS-WLL005B1?
● Optimized Energy Management: Seamlessly integrate with solar panels or grid power to store excess energy and reduce reliance on peak tariffs.
● Future-Ready Scalability: Expand capacity by connecting multiple units (up to 6P).
● Silent Operation: Perfect for noise-sensitive environments.
Technical Specifications
| Model | PowerCool-WLL005B1 |
| Total Energy | 5.22kWh |
| Usable Energy(DC) | 4.96kWh |
| Voltage | 44.8~57.6Vdc |
| Nominal Voltage | 5.12Vdc |
| Rated Capacity | 102Ah |
| Max. Charge Voltage | 57.6Vdc |
| Nominal Discharging Current | 50A(1P) /100A(2P) / 150A(3P) / 160A(4P) / 160A(5P) / 160A(6P) |
| Nominal Charging Current | 50A(1P) /100A(2P) / 150A(3P) / 160A(4P) / 160A(5P) / 160A(6P) |
| Weight | 45kg |
| Dimension(mm)(H*L *W) | 632*418*136.5mm |
| Max.recommended DOD | 95% |
| Operating Condition | Indoor |
| Operating Charge | 0~55°C |
| Temperature Discharge | 0~55°C |
| Standard Ambient Temperature Range | 0~40°C |
| Storage Temperature Range | >1 month 0~35°C / ≤1 month -20~45°C |
| Humidity | 5% ~ 95%(RH)(No Condensation) |
| Over Voltage Category | II |
| Cooling Type | Natural cooling |
| Case Material | Metal |
| Installation | Wall-mouted or floor-standing |
| IP Rating | IP 20 |
| Protective Class | I |
| Max. Connection Number | 6P |
| Communication | CAN / RS485 |
| Battery Protection | Over-current/Over-voltage/Short circuit/ Under-voltage/Over-temperature |
| Certificates | CE, UN38.3, MSDS |
| Warranty | 5 years |
